Vassili's Snipers Scopecam (2015)
Finally its ready to be tested on the field.
(sorry for the bad pictures with my iphone but the end result pictures are taken with a professional  camera)

How i made this:

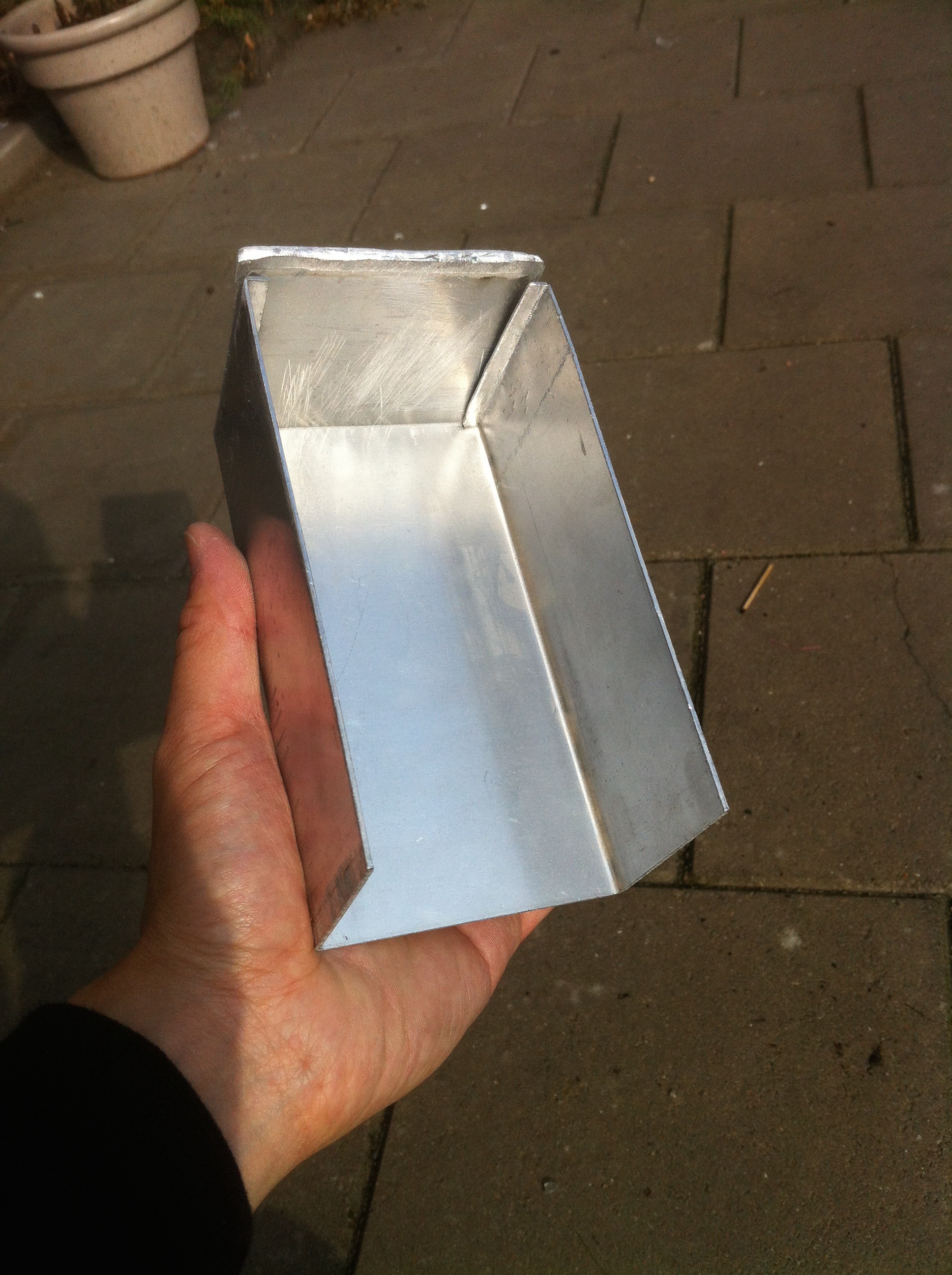

I just got an aluminium shovel that has already the box form.
IMG_9194 IMG_9275
IMG_9281 IMG_9283
IMG_9289

I cut it out and from the flat part i made a cover.
IMG_9336 IMG_9338 IMG_9339

Later on i turned around that the cover is the bottom and the bottom is the cover.
I was thinking how could i mount the scope on the sniper scope. As below you can see
i use just scope mount rings (with easy detachable lever), and a rail on the bottom of the box.
IMG_9766 IMG_9767 IMG_9772 IMG_9773

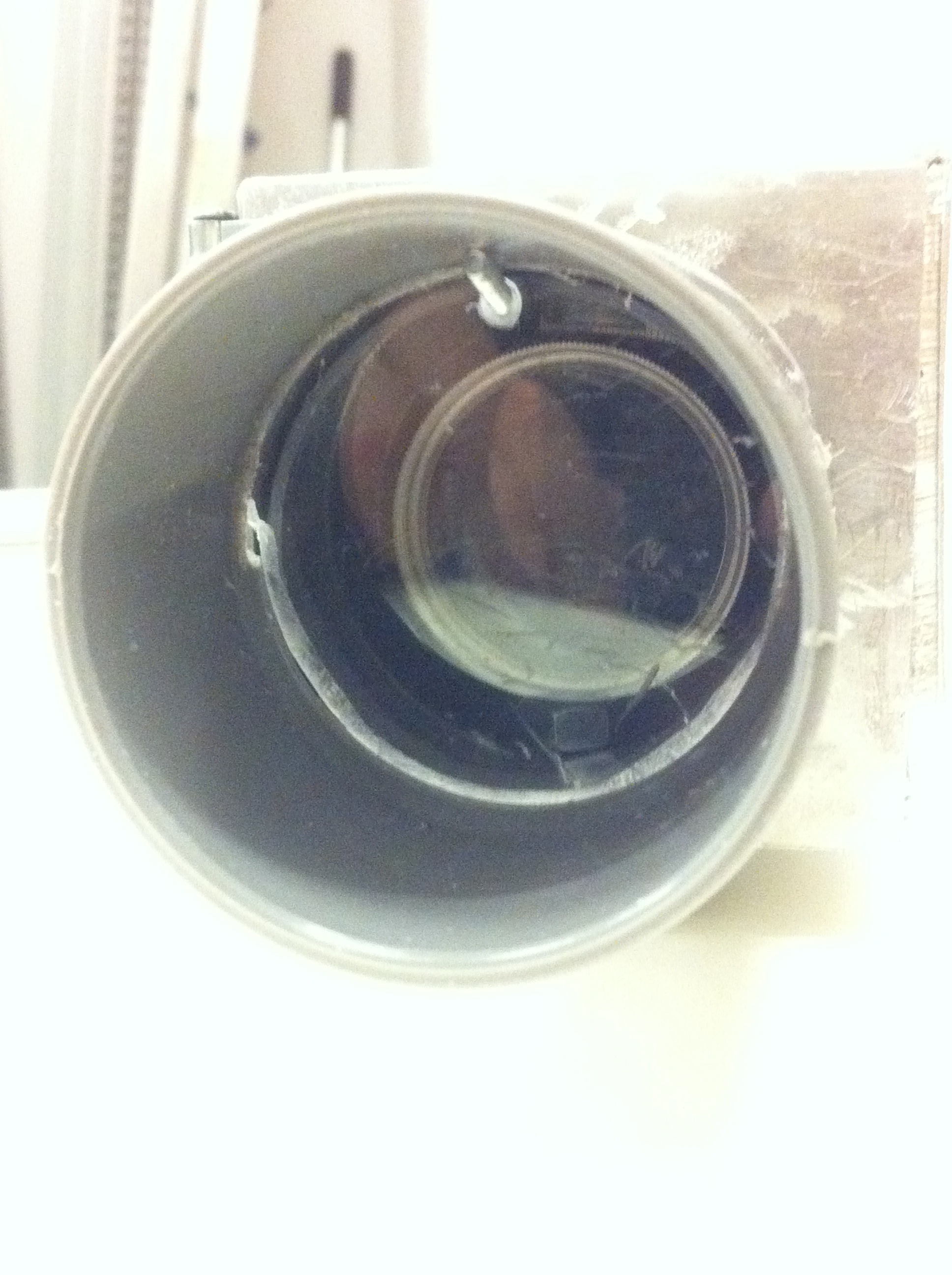

Now i had to make a protection glass so the camera won't get damage when a BB enters the scope.
I use Plexiglass. I cut half of the tube and slide the plexiglass on it. That looks pretty ugly.
IMG_9886 IMG_9885

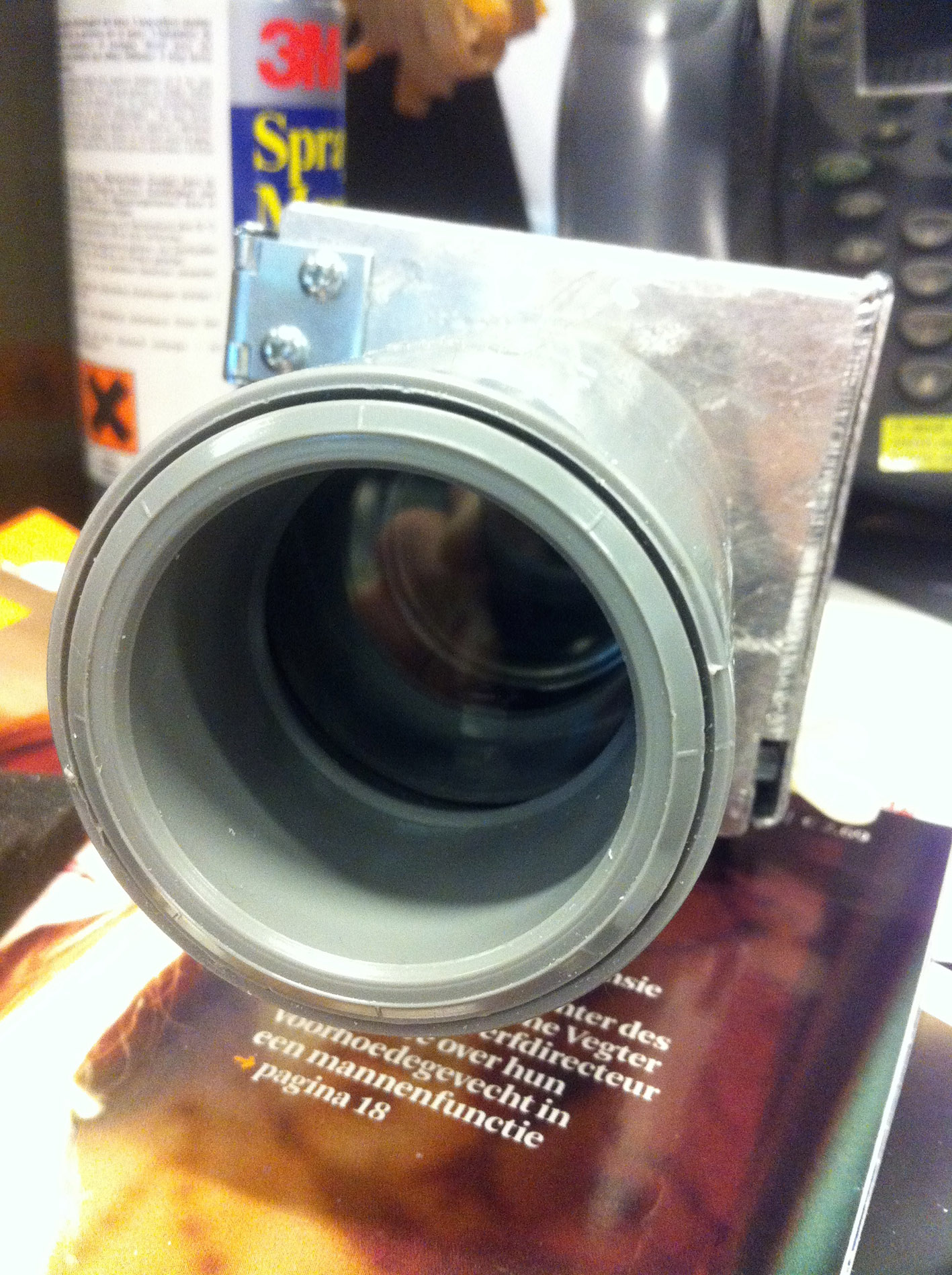

I remake the plexiglass, fitted it in the outertube and added an extra small tube to hold the glass in place.
IMG_9888 IMG_9894

Then i started to pain it in black.
IMG_9899

This is the end result! I present you Vassili's Scopecam!



Thank you for reading,

Vassili out.
